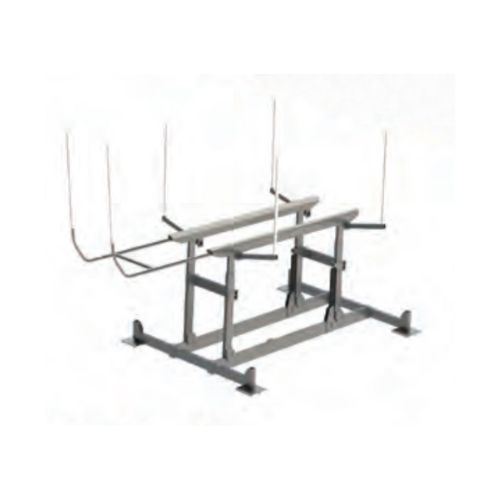

Features

Shallow water design (draft +8"): The cylinder sits above the side beams allowing these to be jetted into the sand or silt without impeding the cylinder motion, giving you an additional 5" of water bringing the water requirement down to draft +3".

Overcentre lock: An additional safety feature that locks the lift in the fully raised position, preventing it from drifting down should there be a loss of pressure.

Adjustable width: Allows you to configure bunks for any hull design.

Marine Grade 6061 T6 Aluminum Frame: With minimum wall thickness of 0.25".

The H-Frame: Utilizes pockets and sleeves for a stronger mechanical connection, minimizing the reliance on welds.

Large synthetic rubber capped aluminum bunks: Give more support to your boat; they will not rot or deteriorate.

Delrin bushings in pivot areas: Eliminate metal on metal contact and reduce galvanic corrosion from dissimilar metals.

Lifting range: 4', 5', or 6' lifting range available.

Non-skid footpads.

Stainless steel cylinder and hoses: Grade 2205 Duplex cylinder offers twice the strength and corrosion resistance of 316L, with double epoxy coating for added protection. Grade 17-4 PH rod with chrome coating. Grade 316 braided 100R8 hoses with Grade 316 fittings.

Rod retracted: When in up position protects it from pitting, corrosion, and damage from marine growth.

External bronze scraper: Can be field replaced without removing the cylinder.

Oversized rod eyes: Provide more bearing surface for the pins.

1" diameter high strength stainless steel cylinder pins.

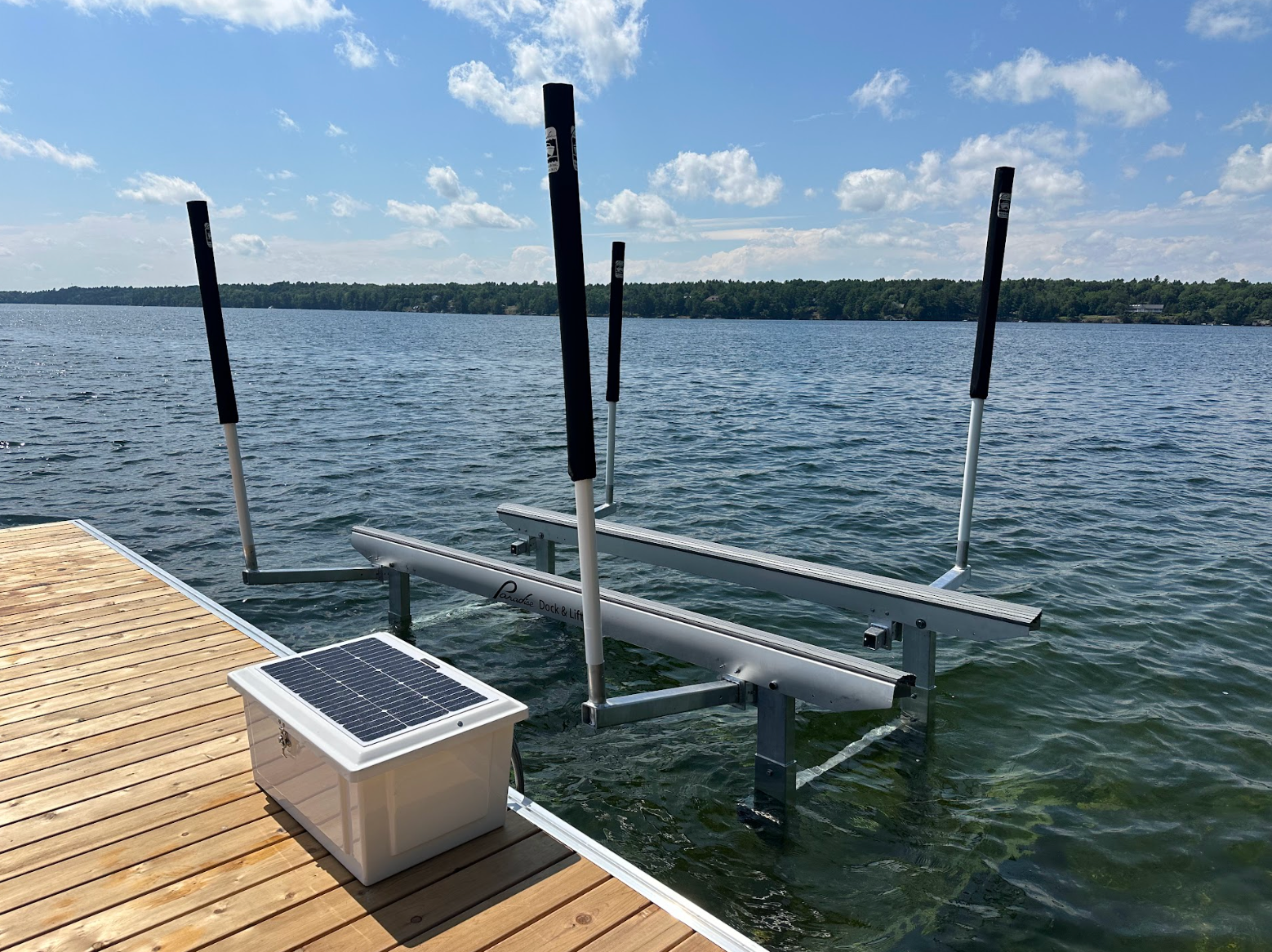

Industry leading 50 watt solar panel: With standard MPPT solar regulator to prevent overcharging and battery damage.Industry leading 50 watt solar panel: With standard MPPT solar regulator to prevent overcharging and battery damage.

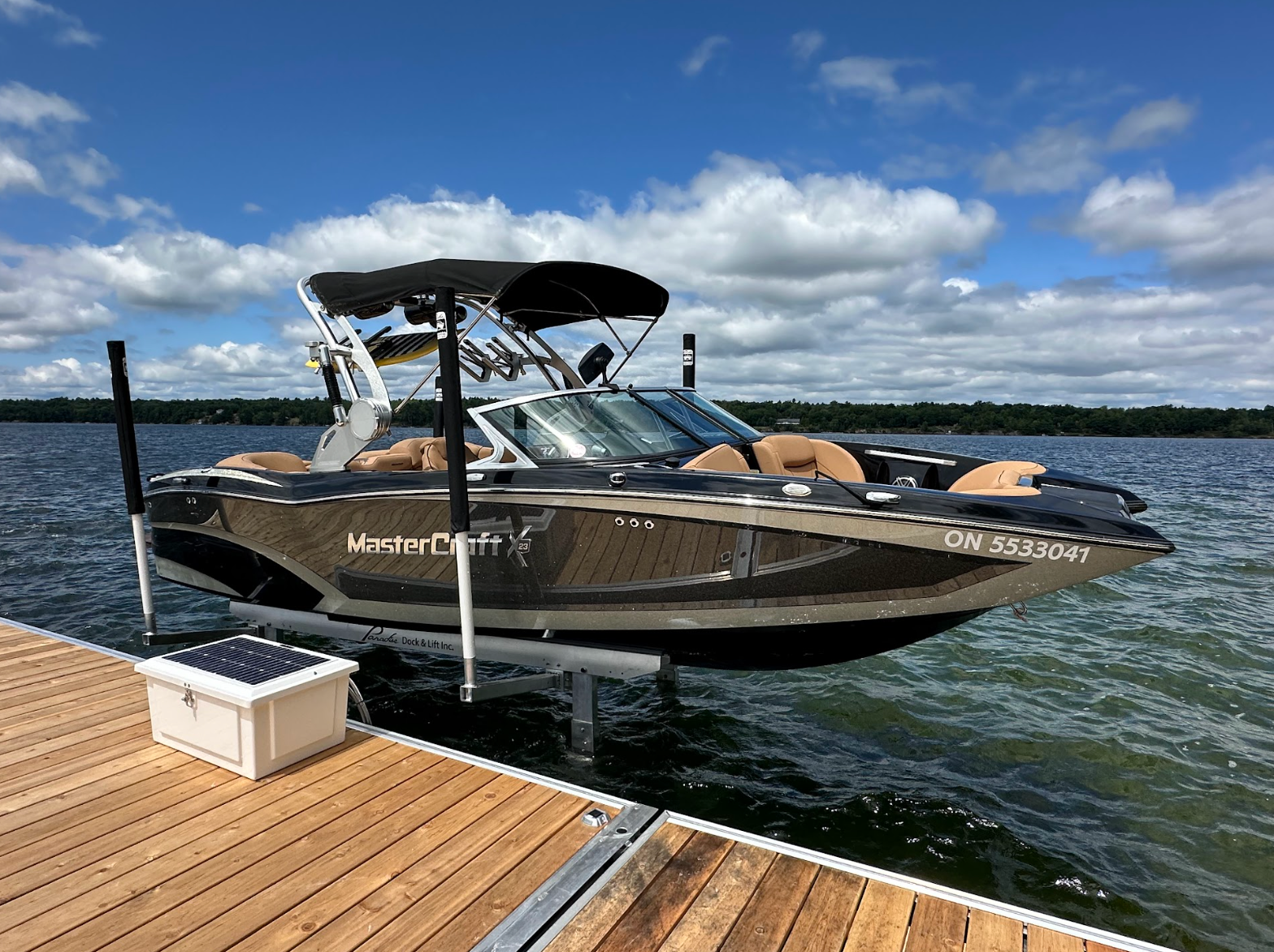

Beautiful fiberglass dock box: With stainless steel hardware.

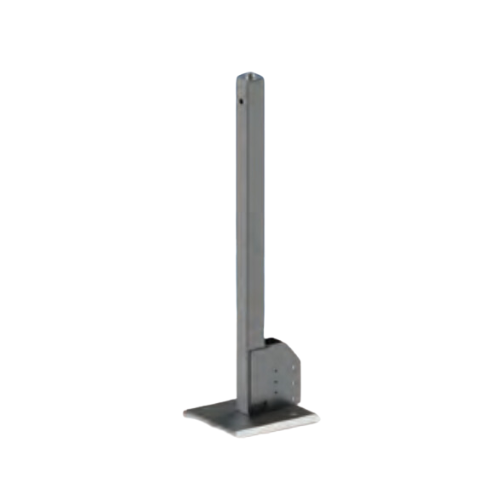

Optional powerpack brackets: For either leg or dock mounting.
